DIN3356 铸铁截止阀

DIN3356 铸铁截止阀 (J4116)

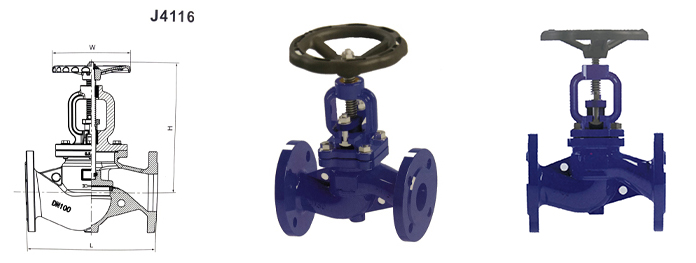

DIN3356 CAST IRON GLOBE VALVE (J4116)

说明 --- DESCRIPTION

1. 该产品按照DIN3356标准设计.

   Valve design conforms to DIN3356.

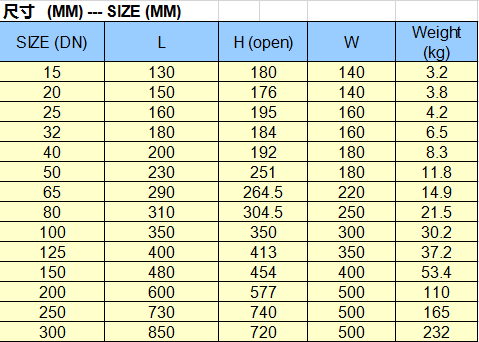

2. 结构长度符合EN558-1的第1系列, DIN3202 F1

   Face to face dimension conforms to series 1 of EN558-1, DIN3202 F1.

3. 连接法兰钻孔尺寸符合EN1092-2.

   Flange drilled conforms to EN1092-2.

4. 测试标准根据ISO5208, EN12266

   Test Confirms To: ISO5208, EN12266
